Brief Introduction

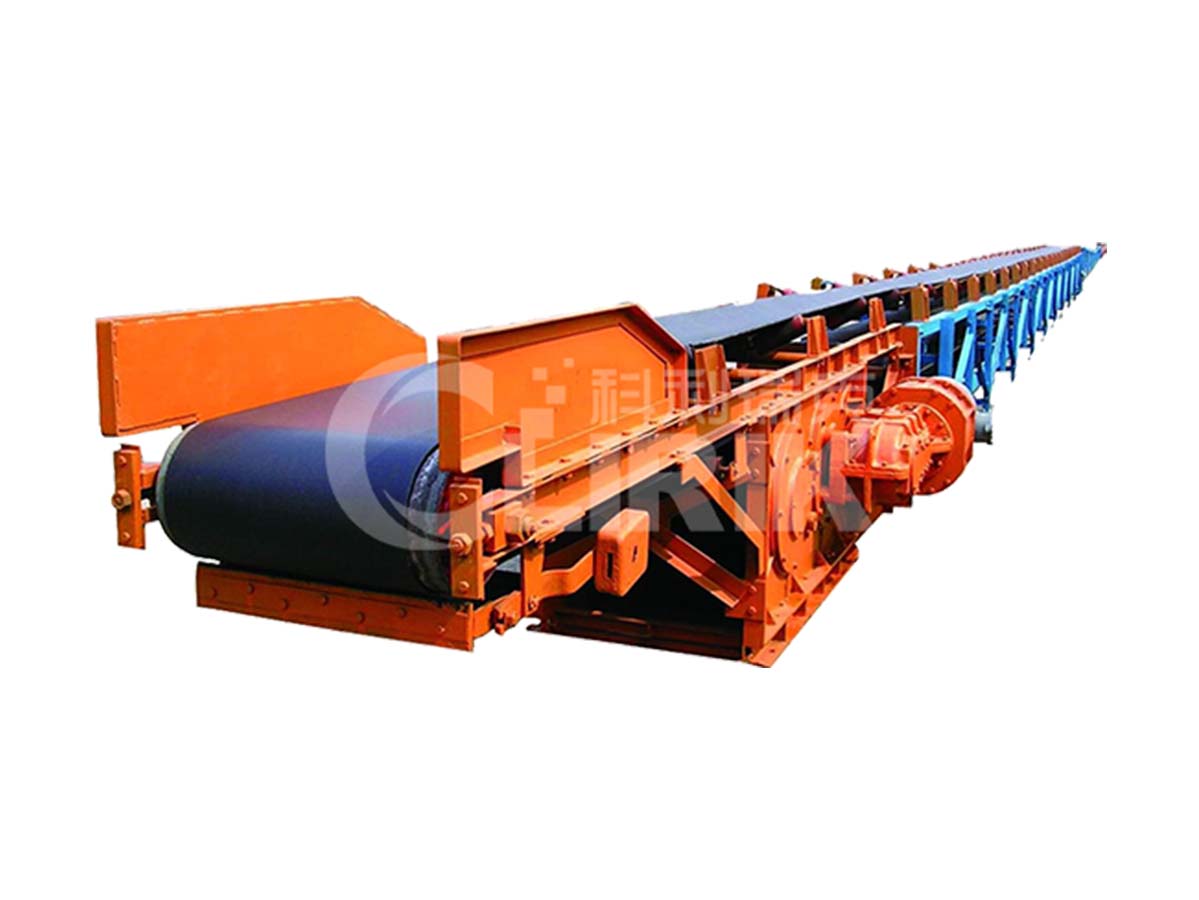

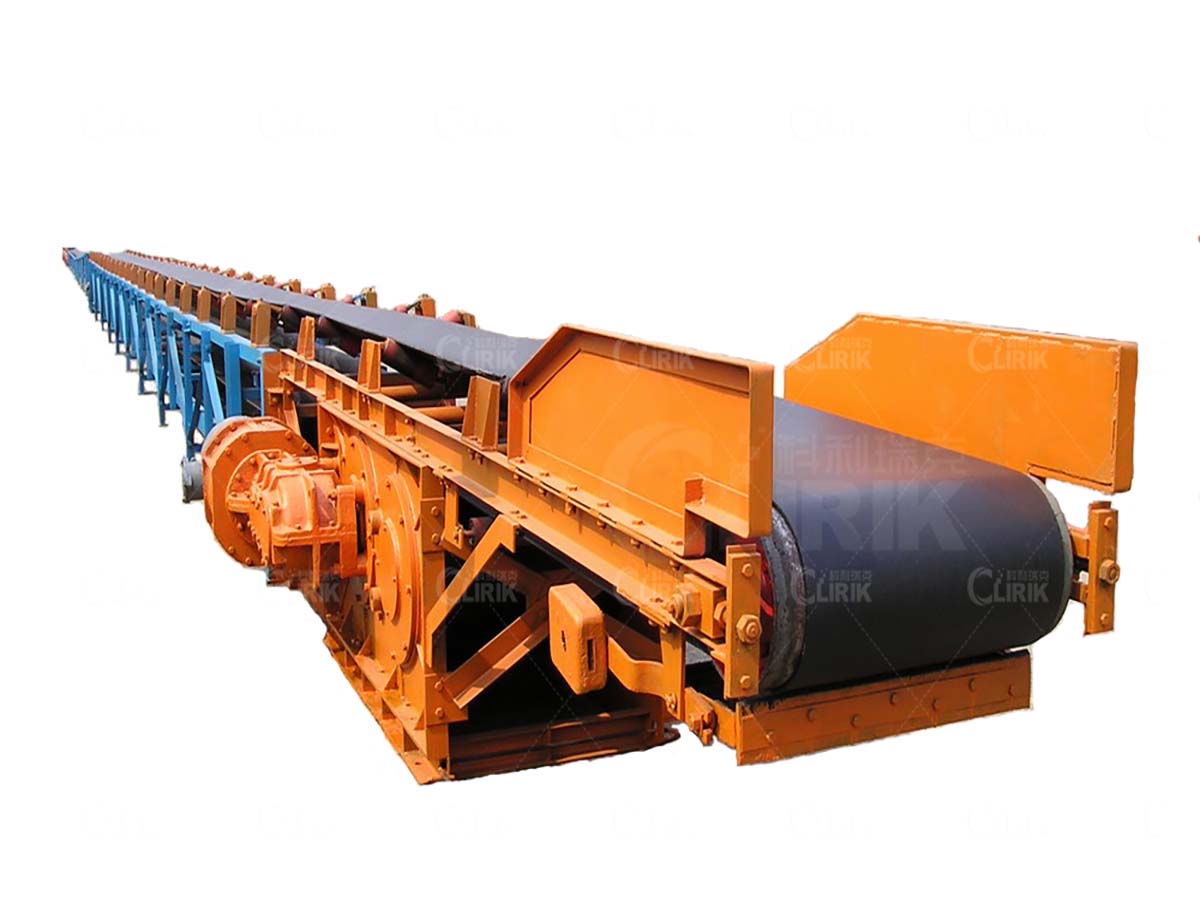

This series of Clirik belt conveyors combines robust capacity with a simple structure, facilitating easy maintenance and featuring standardized components.
Application
The Conveyor is adaptable for both standalone and integrated use, designed to create horizontal or inclined systems. It operates efficiently across a wide temperature range, from -20°C to +40°C, and is capable of handling materials with temperatures up to 50°C.
The Conveyor is widely used in the mining and metallurgy industries for the efficient transportation of bulk materials and finished goods.
Specification
| Belt Width (mm) | Length (m) Power (kw) | Speed (m/s) | Capacity (t/h) | ||
| 500 | ≤12 3 | 12-20 4-5.5 | 20-30 5.5-7.5 | 1.3-1.6 | 78-191 |
| 650 | ≤12 4 | 12-20 5.5 | 20-30 7.5-11 | 1.3-1.6 | 131-323 |
| 800 | ≤6 4 | 6-15 5.5 | 15-30 7.5-15 | 1.3-1.6 | 278-546 |
| 1000 | ≤10 5.5 | 10-20 7.5-11 | 20-40 11-22 | 1.3-2.0 | 435-853 |
| 1200 | ≤10 7.5 | 10-20 11 | 20-40 15-30 | 1.3-2.0 | 655-1284 |
Other Main Products
Clirik’s European Coarse Powder Mill is used in industries like metallurgy and construction, crushing rocks up to 320 MPa into coarse powder, with most particles under 3mm.
Clirik’s High Pressure Suspension Grinding Mill manages minerals up to hardness 9.3 and low moisture, offering fineness control from 50 to 325 meshes.
The CLUM Ultrafine Mill is used in industries like chemicals and metallurgy, specializing in producing fine powders for papermaking, coatings, and plastics. It processes materials like calcite, marble.
Clirik’s Enhanced Roller Grinding Mill processes minerals up to Moh’s hardness 6, used in various industries with adjustable output from 50 to 325 meshes.
