- Large materials are initially crushed by a jaw crusher to the required particle size and then transported by a bucket elevator to the storage hopper.
- From there, they are uniformly and continuously fed into the main unit for grinding by a vibrating feeder.
- The ground powder is carried by the airflow generated by the blower to the classifier for classification. Particles that meet the desired fineness enter the cyclone collector through the pipeline, where they are separated and collected.
- Finally, they are discharged through the discharge valve as finished products. The airflow system operates as a sealed circulation under both positive and negative air pressure.
Brief Introduction

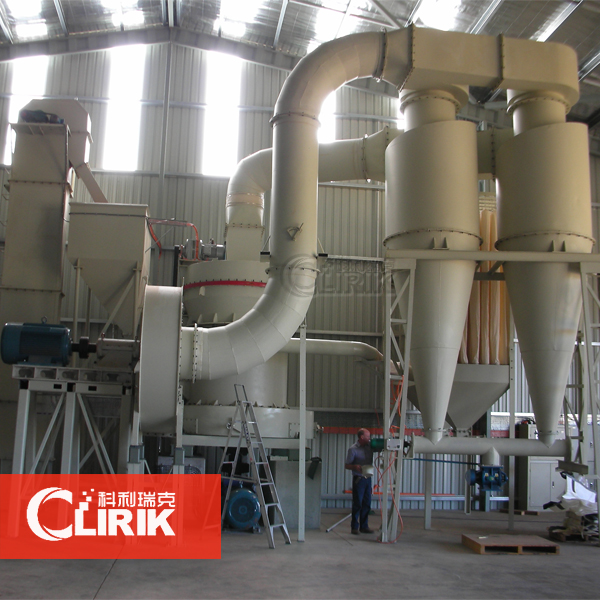

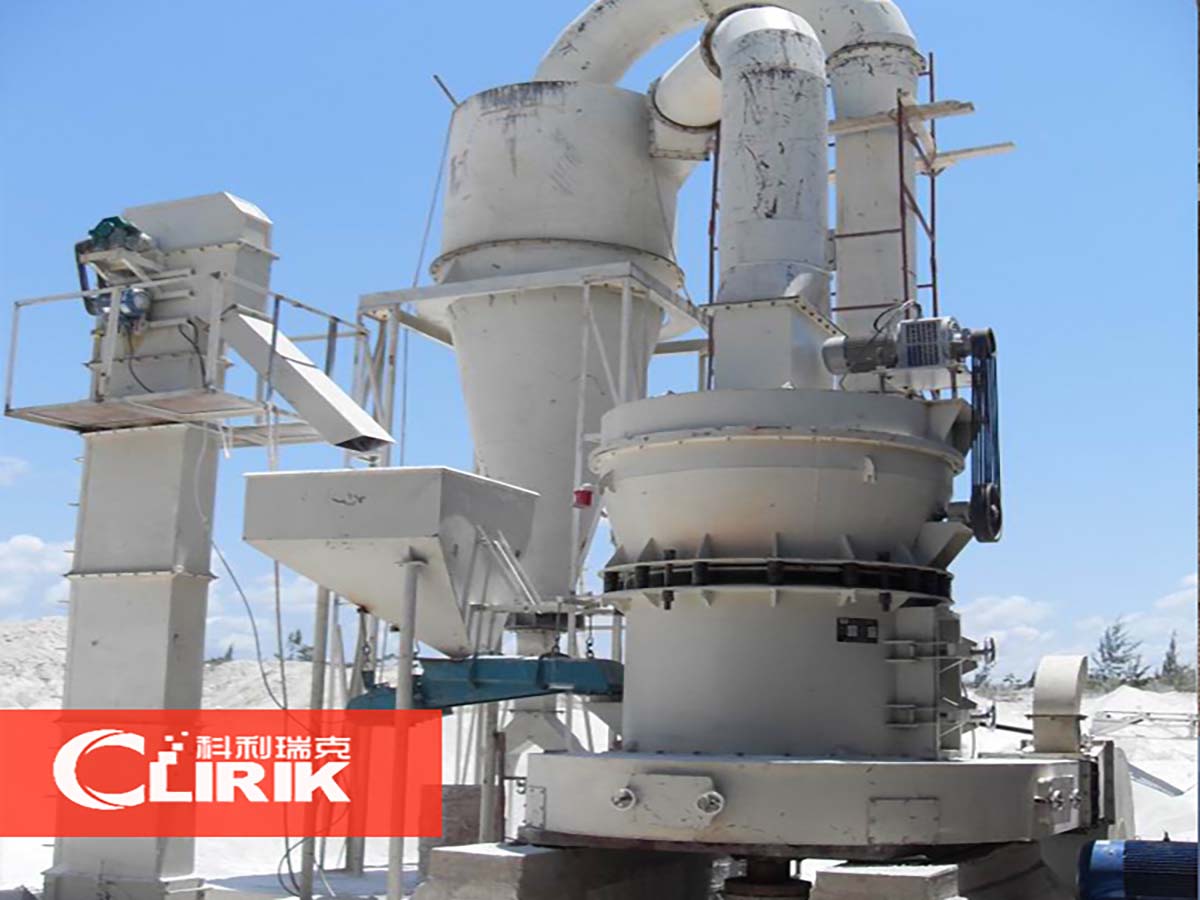

High Pressure Suspension Grinding Mill efficiently handles various non-flammable and non-explosive minerals with hardness up to 9.3 and low moisture. It offers precise control over powder fineness from 50 to 325 meshes (313-45 microns), making it essential for industries requiring precise grinding solutions.
Scope
High Pressure Suspension Grinding Mill is used in industries like metallurgy, construction, and mining, grinding materials including quartz, limestone, and more.
Working Principle
1. Initial Crushing
2. Feeding to Mill
3. Powder Classification
4. Final Collection and Discharge
Working Features
1. High Pressure Spring Design
Boosts grinding efficiency with 20-30% increased capacity compared to Raymond mills under similar conditions.
2. Smooth Vibration Reduction Design
Minimizes noise and prevents machine vibrations effectively.
3. Convenient Vane Adjustment Design
Patented feature allowing easy adjustment for precise control over product fineness.
4. Strong Material Applicability
Suited for materials with Moh’s hardness less than 6, demonstrating versatility.
5. Superimposed Multistage Seal
Ensures excellent sealing performance for enhanced operational efficiency.
Main Specification
| Model | Roller Quantity（piece） | Roller Diameter（mm） | Roller Height（mm） | Ring Inner Diameter（mm） | Ring Height（mm） | Feeding Size（mm） | Finished Size（mm） | Motor Power（KW） | Capacity（t/h） | Overall Dimension（mm） |
| YGM7815 | 3 | 260 | 150 | 780 | 150 | 15 | 0.613-0.033 | 18.5 | 1-3 | 4300*3500*5100 |
| YGM8314 | 3 | 270 | 140 | 830 | 140 | 20 | 0.613-0.033 | 22 | 1.2-4.6 | 5300*4100*5200 |
| YGM9517 | 4 | 310 | 170 | 950 | 170 | 25 | 0.613-0.033 | 37 | 2.1-5.6 | 7100*5900*7900 |
| YGM4121 | 5 | 410 | 210 | 1280 | 210 | 30 | 0.613-0.033 | 75 | 2.8-10.5 | 9200*7250*9700 |
| YGM1600 | 6 | 440 | 270 | 1600 | 270 | 35 | 0.613-0.033 | 132 | 5-15 | 12550*5700*8350 |
| YGM1750 | 5 | 520 | 280 | 1750 | 280 | 40 | 0.613-0.033 | 160 | 7-25 | 11450*7610*9906 |
Other Main Products
Clirik’s HGM Micro Powder Mill is known for stability and low maintenance, ideal for fine milling of over 100 brittle materials like calcite and limestone.
Clirik’s European Coarse Powder Mill is used in industries like metallurgy and construction, crushing rocks up to 320 MPa into coarse powder, with most particles under 3mm.

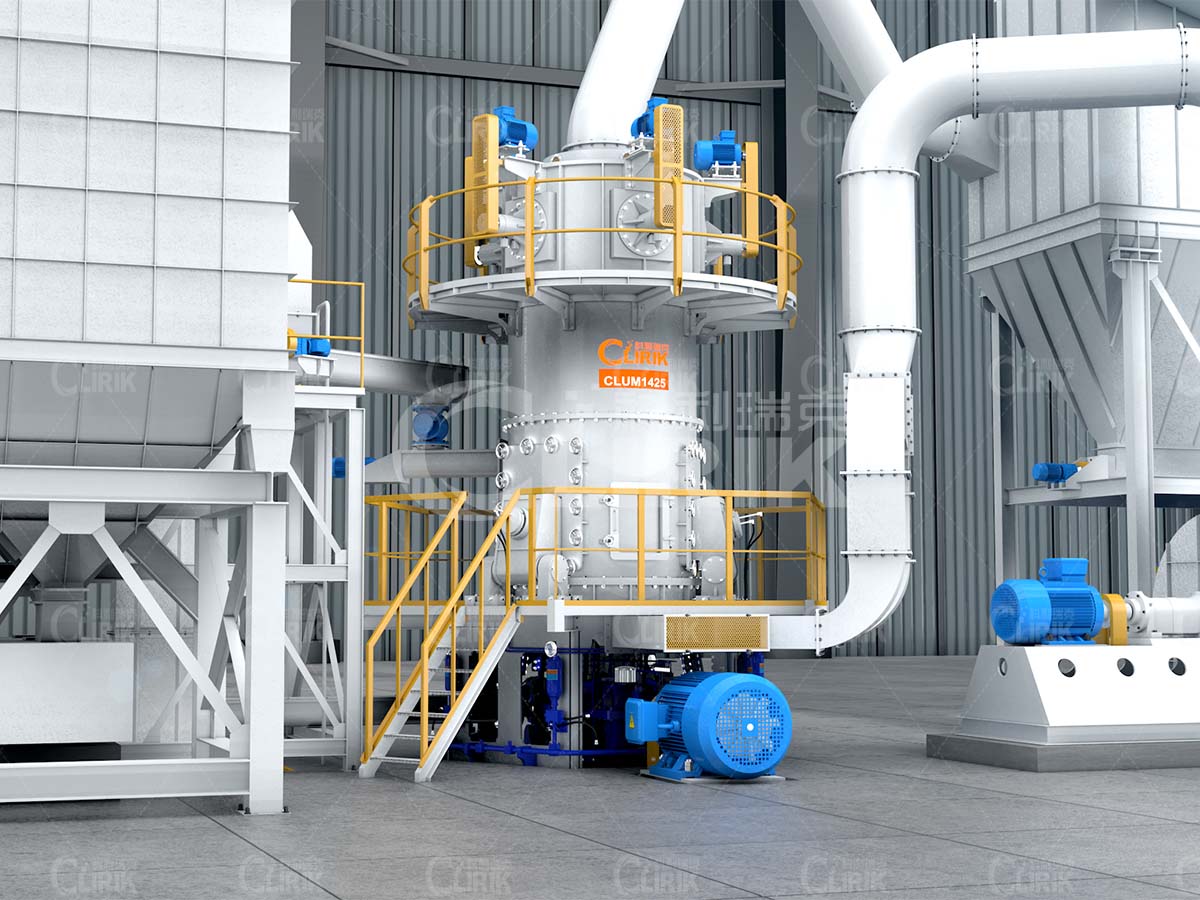

The CLUM Ultrafine Mill is used in industries like chemicals and metallurgy, specializing in producing fine powders for papermaking, coatings, and plastics. It processes materials like calcite, marble.
Clirik’s Enhanced Roller Grinding Mill processes minerals up to Moh’s hardness 6, used in various industries with adjustable output from 50 to 325 meshes.
