Brief Introduction

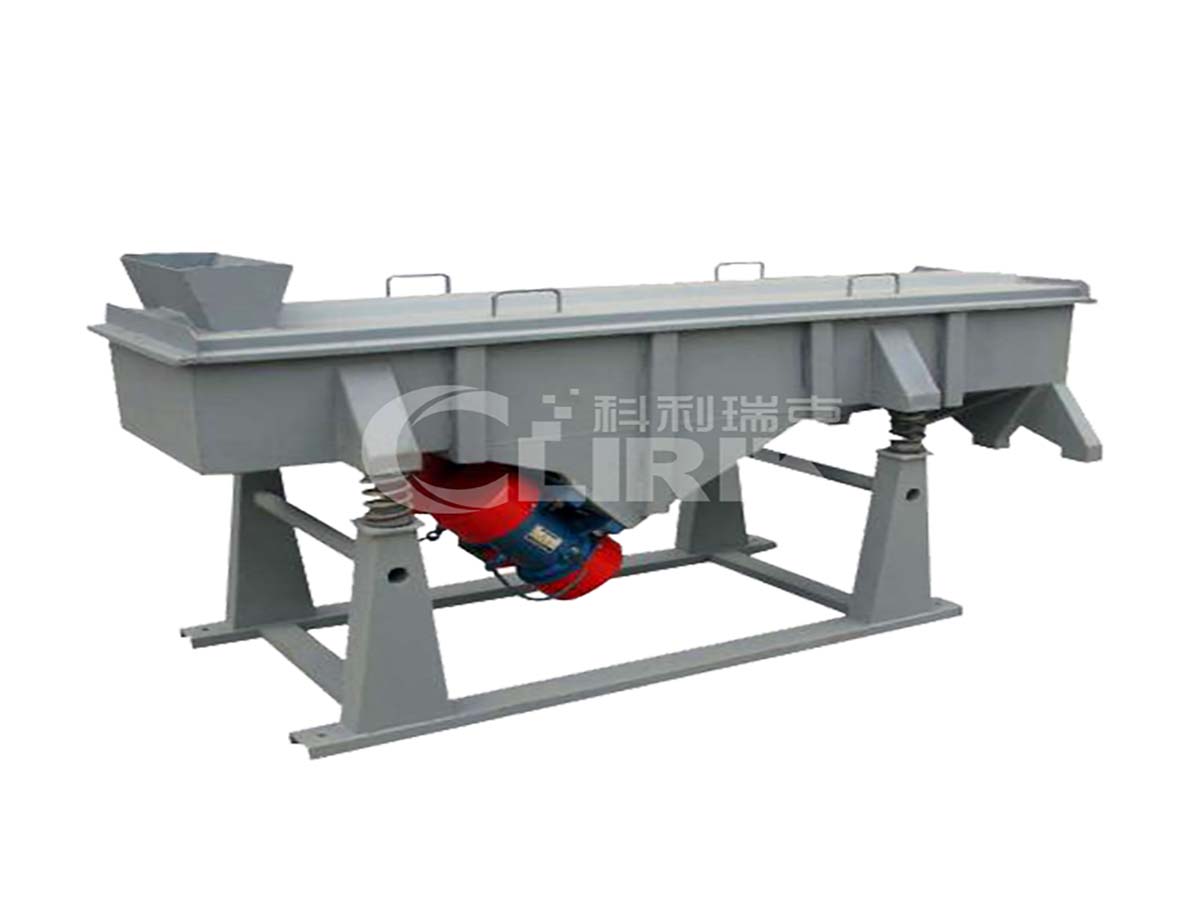

Linear vibrating screens are utilized for the sorting and grading of powder and granular materials across various industries including plastics, abrasives, chemicals, pharmaceuticals, building materials, food, carbon products, and fertilizers.
Working Features
· Excellent sealing to minimize dust emission.
· Low energy consumption, minimal noise, and extended screen life.
· High precision screening, large capacity, and simple structure.
· Fully enclosed design with automatic discharge, ideal for streamlined operations.
· Robust construction using rolled welded steel plates and profiles, ensuring durability and reliability.
Working Principle
Feeding Process
Material is evenly fed into the screening machine through the feeding port, creating the foundation for the sorting process.
Screening Motion
Once on the screen, the material is thrown up and moves forward in a straight line, allowing for the separation based on particle size.
Sieving and Discharge
The material passes through multiple layers of screens, with various sizes being sifted and discharged through their respective outlets.
Specification
| Type | Screen Size | Layer | Capacity （t/h) | Amplitude (mm) | Power (kw) | Vibrate Angle | Dimension(m) |
| ZSF1020 | 1m*2m | 1-6 | ≤5-7t | 6-8 | 0.75kw*2 | 45-60° | 1.3*2.3*1.3 |
| ZSF1030 | 1m*3m | 1-6 | ≤5-10t | 6-8 | 0.75kw*2 | 45-60° | 1.3*2.3*1.3 |
| ZSF1224 | 1.2m*2.4m | 1-6 | ≤10t | 6-8 | 1.1kw*2 | 45-60° | 1.5*2.7*1.6 |
| ZSF1237 | 1.2m*3m | 1-6 | ≤15t | 6-8 | 1.5kw*2 | 45-60° | 1.5*2.7*1.6 |
| ZSF1530 | 1.5m*3m | 1-6 | ≤20t | 6-8 | 1.5kw*2 | 45-60° | 1.2*2.3*1.7 |
| ZSF1538 | 1.5m*3.8m | 1-6 | ≤25t | 6-8 | 2.2kw*2 | 45-60° | 1.2*2.3*1.8 |
| ZSF1545 | 1.5m*4.5m | 1-6 | ≤30t | 6-8 | 2.2kw*2 | 45-60° | 1.2*2.3*1.8 |
