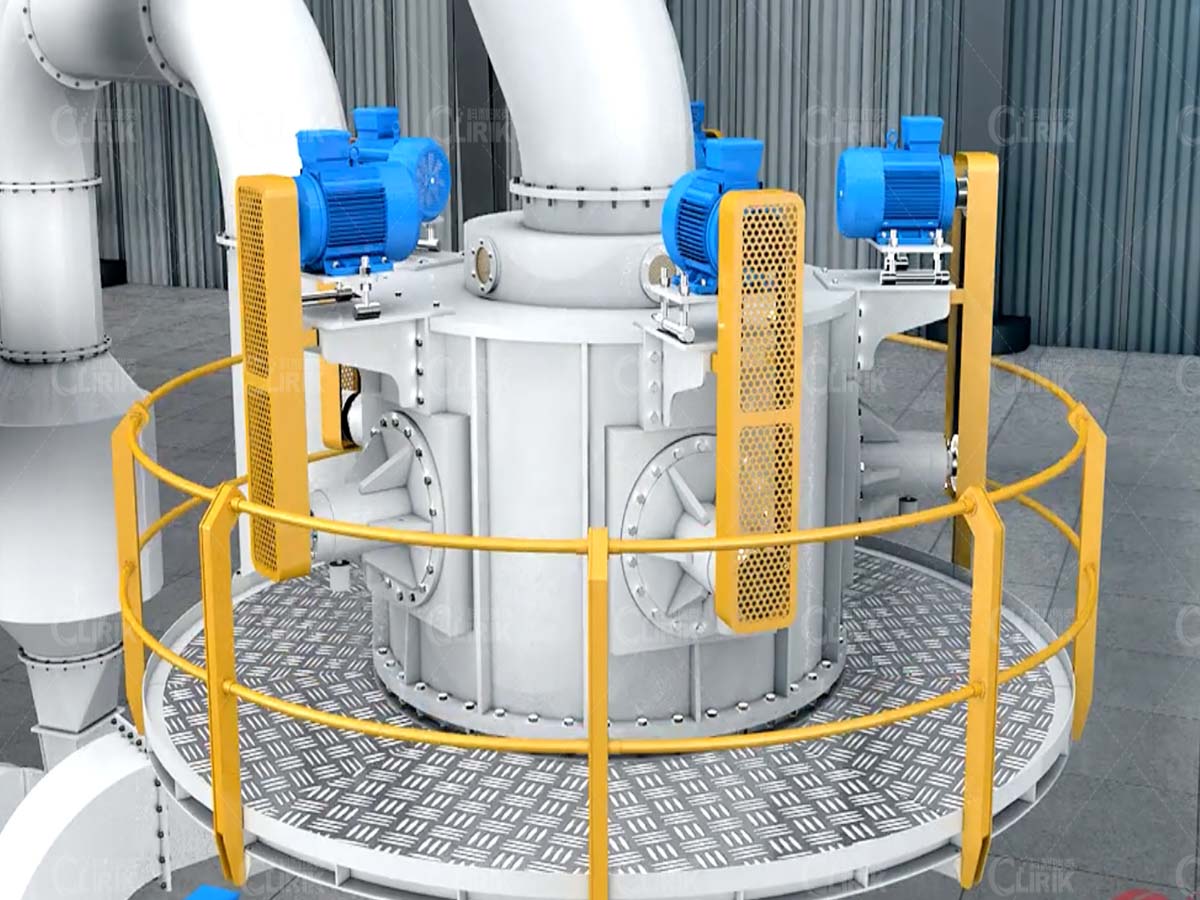

Brief Introduction
Our Multi-head Classifier works seamlessly with different types of grinding mills to efficiently separate materials such as calcite, gypsum, barite, kaolin, talc, limestone, silica, Mg/AL(OH)3, carbon black, metal powder, and wood powder.
Application Fields
Clirik Multi-head Classifier finds extensive application in industries such as plastics, rubber, paints, ceramics, food processing, abrasives, new materials, and others.
Working Principle
Material is fed into the system through a bottom inlet and carried to the separation area by an air blower.
The high-speed classifying turbine creates centrifugal force to differentiate coarse and fine materials.
Specified fine powders are collected by the classifier blade in a cyclone or dust cleaner.
Coarse particles rebound off the classifier and return to the grinding chamber for further processing.
Working Features
· High rotational speed and precise vertex cutting achieved through optimized structure and impeller spacing based on hydromechanical principles.
· High capacity with low energy consumption—up to 50 t/h capacity and significantly lower electricity usage compared to traditional classifiers.
· PLC automatic control system enables real-time operational monitoring and user-friendly interface.
· Horizontal classifying turbine unit ensures high-speed, accurate vertex cutting.
Main Specification
| Model | CDF/3 | CDF/4 | CDF/5 |
| Power（kw） | 3*11 | 4*15 | 5*18.5 |
| Max Speed（rpm） | 3500 | 3000 | 3000 |
| Fineness（um） | 5-150 | 6-150 | 8-150 |
| Capacity（t/h） | 1.5-10 | 2.8-20 | 5-45 |
Other Main Products

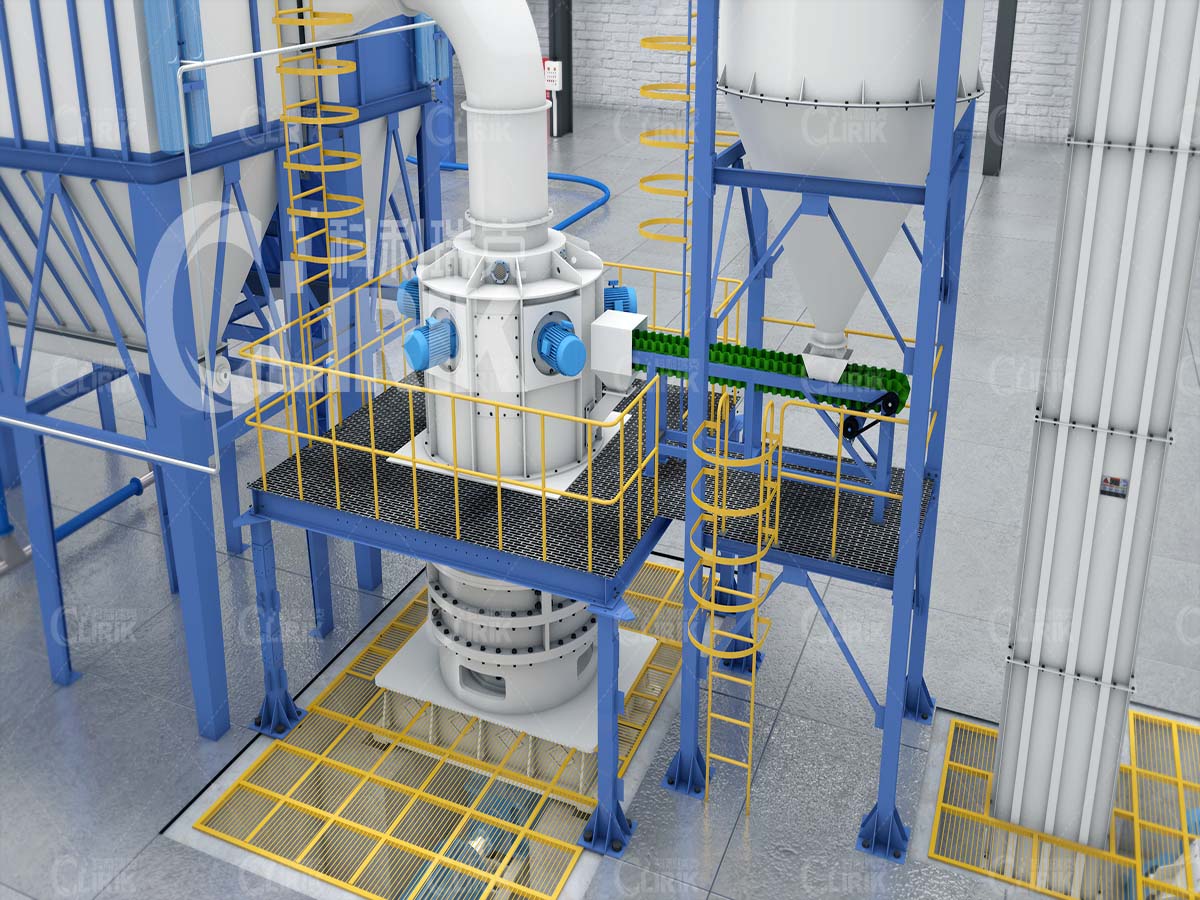

Clirik’s HGM Micro Powder Mill is known for stability and low maintenance, ideal for fine milling of over 100 brittle materials like calcite and limestone.
Clirik’s High Pressure Suspension Grinding Mill manages minerals up to hardness 9.3 and low moisture, offering fineness control from 50 to 325 meshes.
The CLUM Ultrafine Mill is used in industries like chemicals and metallurgy, specializing in producing fine powders for papermaking, coatings, and plastics. It processes materials like calcite, marble.
Clirik’s Enhanced Roller Grinding Mill processes minerals up to Moh’s hardness 6, used in various industries with adjustable output from 50 to 325 meshes.
