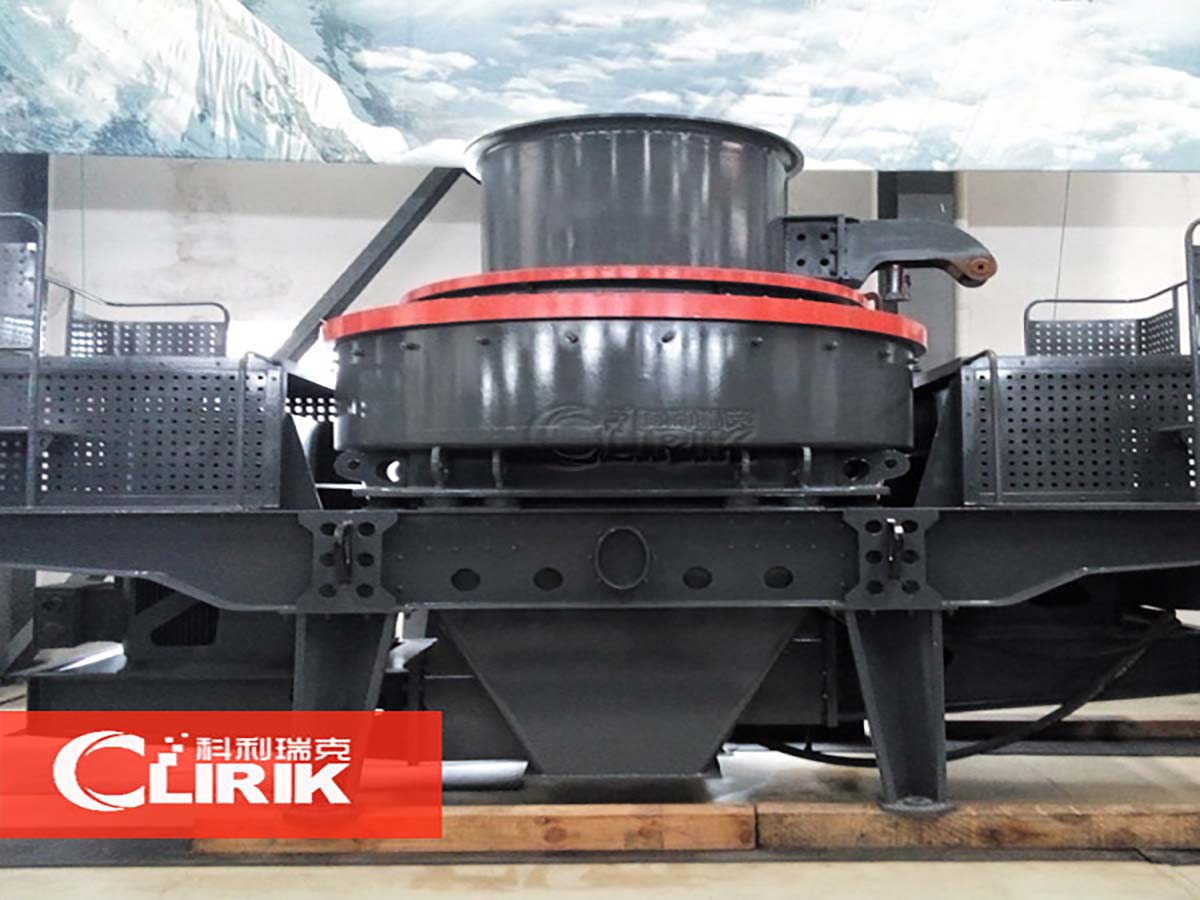

Vertical Impact Crusher

Brief Introduction

Clirik Vertical Shaft Impact Crusher is the preferred equipment for artificial sand making and stone shaping. It is widely used in various levels of hardness materials, from soft materials to hard materials.

Scope

With over 30 years of history, Vertical Shaft Impact Crusher is extensively utilized in metallic and non-metallic ores, fireproof materials, bauxite, diamond dust, glass raw materials, architectural materials, artificial sand, and various metal ores. It excels particularly in processing harder materials compared to other machines.

Working Features

Optimized deep-cavity rotor design increases material throughput by 30%.

Produces fine, cubic-shaped final products with adjustable fineness modulus; reshaping efficiency is improved by 30%.

The round guard plate can be rotated for extended usage after partial wear, improving material utilization.

The dual-purpose distribution plate allows easy switching between two feeding methods.

Working Principle

Material is crushed by impacting other stones as it falls into the impeller cavity.

Under significant centrifugal force, the material is struck by other materials descending from above.

They collide and generate a vortex between the impeller and shell, undergoing multiple impacts.

Eventually, smaller stones exit and proceed to the vibrating screen. Suitable materials are directed to the sand washing machine, while oversized materials return to the sand maker for recrushing.

Output sizes can be customized according to customer requirements. If the input exceeds the designed size, additional crushing equipment may be necessary.

Specification

Model	Input Size (mm)	Power (kw)	Speed (r/min)	Capacity (t/h)	Dimension (mm)	Weight (kg)
PCL-600	35	22-55	2000/3000	12-30	2500φ16002260	5600
PCL-750	45	45-90	1500/2500	25-55	2780φ18002700	7300
PCL-900	50	90-180	1200/2000	55-100	3900φ21602770	12100
PCL-1050	60	150-264	1000/1700	100-160	4660φ24503660	16900
PCL-1250	60	264-440	850/1450	160-300	5600φ29504000	22000
PCL-1350	60	320-440	800-1193	200-360	5340φ29403650	26000
