Brief Introduction

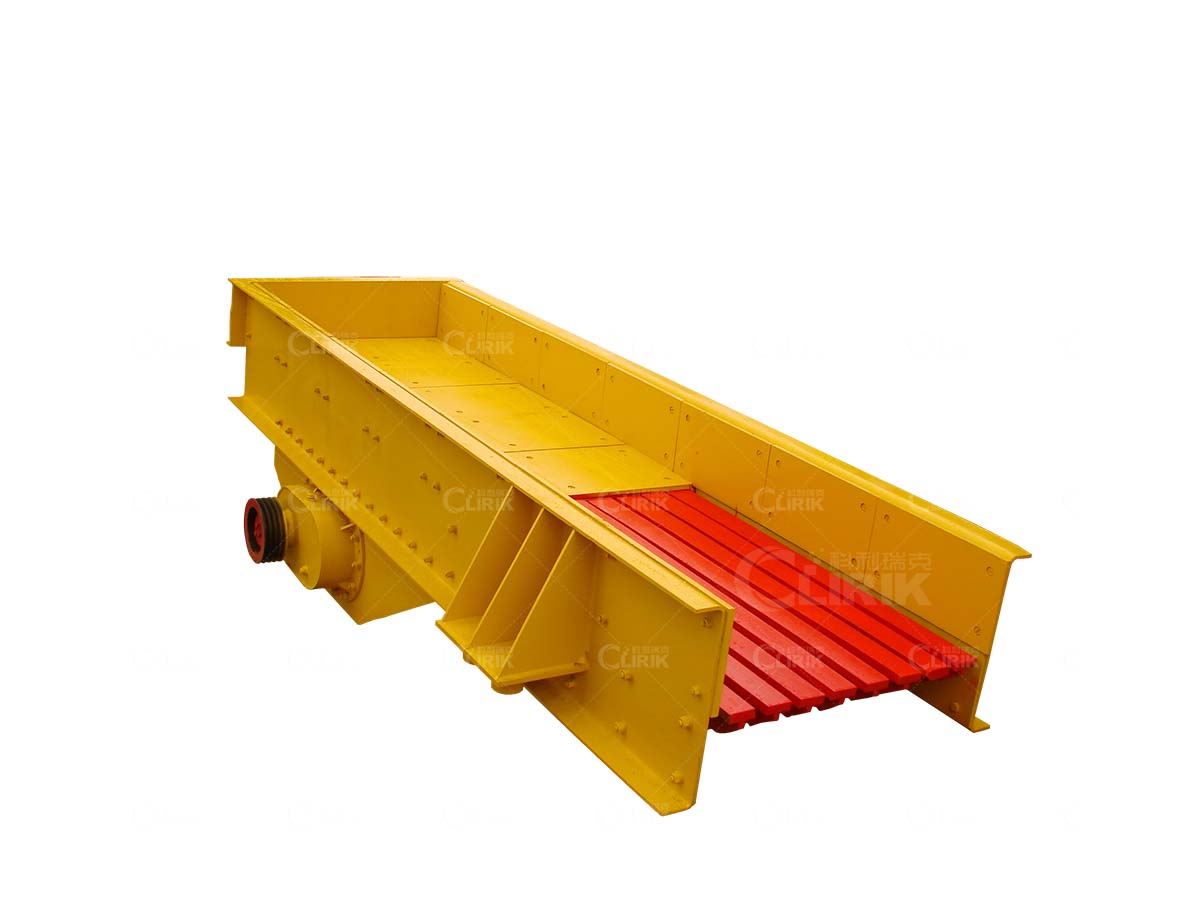

The Vibrating Feeder is a type of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life, and is suitable for feeding materials.
Scope and Application
It finds extensive application in mining, building materials, silicate, and chemical industries within crushing and screening plants. In sand and stone production lines, it ensures even and continuous material feeding to crushers while rough screening materials simultaneously.
It is utilized in various sectors including metallurgy, coal mining, mineral processing, construction, chemical, and grinding industries.
Specification
| Model | Input Size （mm） | Capacity （t/h) | Power (kw) | Taper Slots Size （mm） | Weight （ton） | Dimension (mm) |
| GZD-180*80 | 300 | 30-80 | 2×1.5 | 1800×800 | 0.8 | 2200*1100*800 |
| GZD-200*120 | 300 | 80-500 | 2×2.2 | 2000×1200 | 0.9 | 2000*1200*855 |
| GZD-300*90 | 300 | 40-100 | 2×2.2 | 3000×900 | 1.5 | 3050*1430*1550 |
| ZSW-380*96 | 500 | 90-200 | 11 | 4200×1100 | 5.0 | 3882*2224*2121 |
| ZSW-420*110 | 580 | 150-350 | 15 | 4900×960 | 5.5 | 4250*2500*1365 |
| ZSW-490*110 | 580 | 180-380 | 15 | 4900×1100 | 5.32 | 4957*2500*1365 |
| ZSW-490*130 | 750 | 250-450 | 22 | 4900×1300 | 5.9 | 4957*2580*2083 |
| ZSW-600*130 | 750 | 450-800 | 30 | 6000×1300 | 7.8 | 6082*2580*2083 |
| ZSW-600*150 | 800 | 600-1000 | 30 | 6000×1500 | 8.67 | 6082*2660*2400 |
